Description

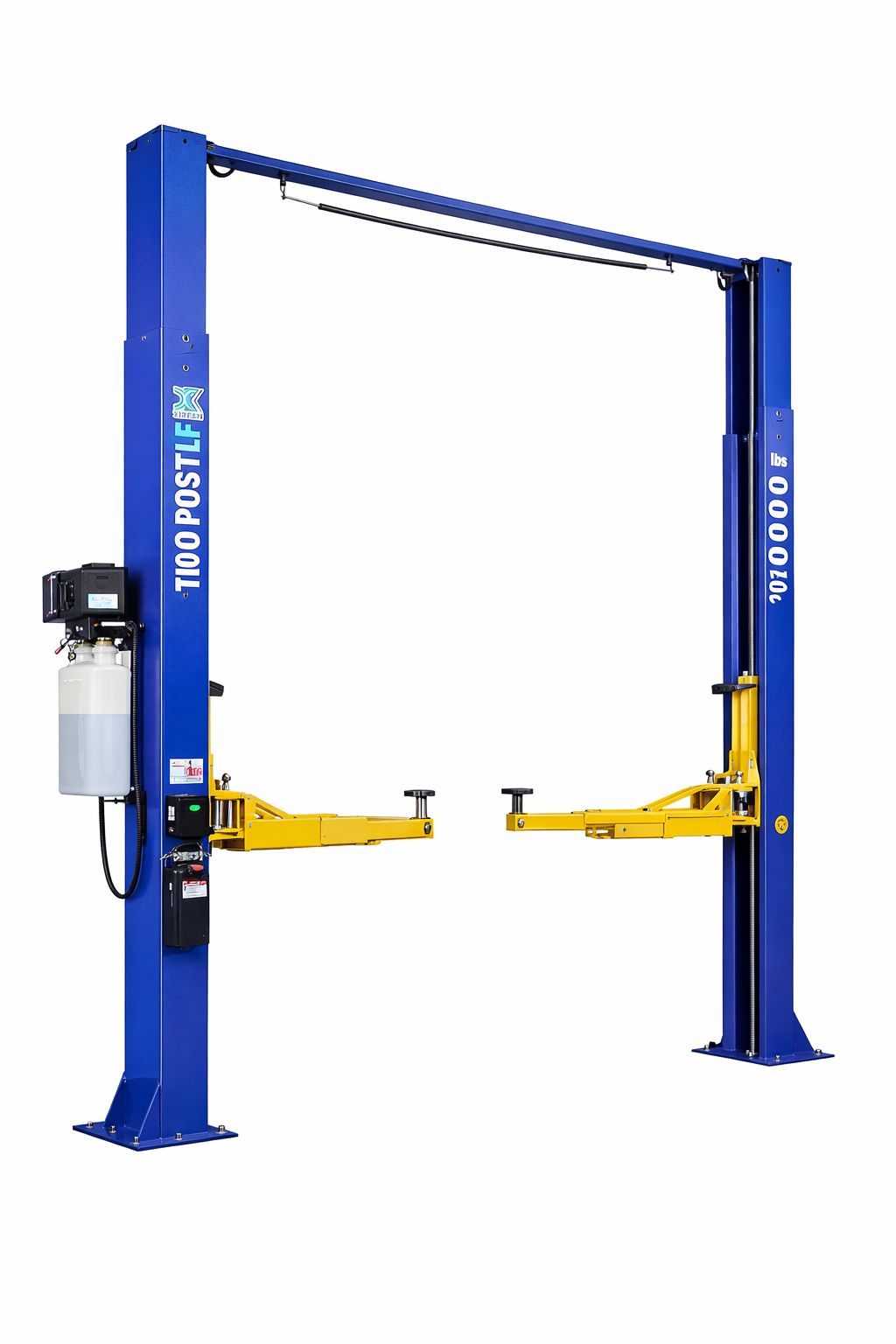

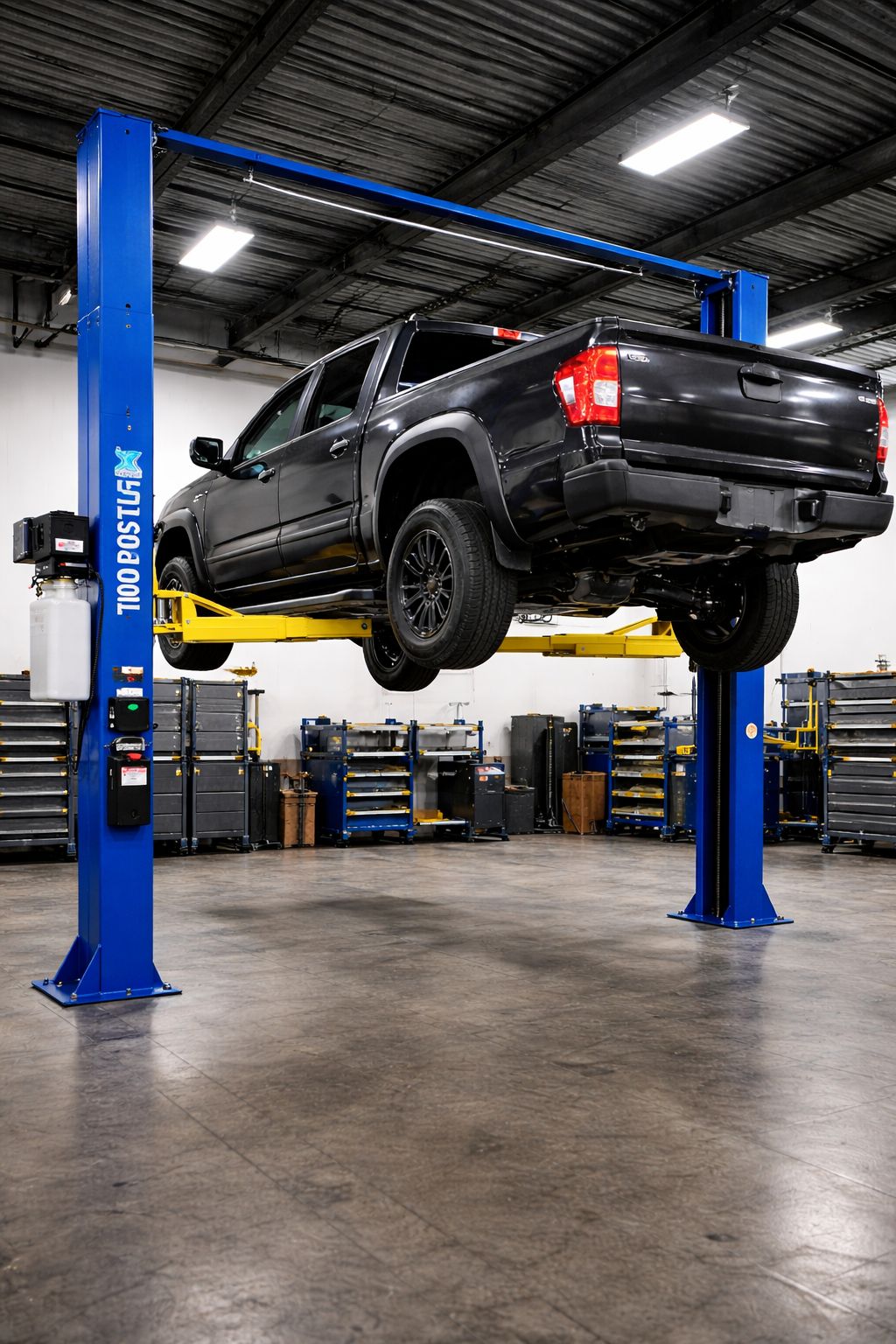

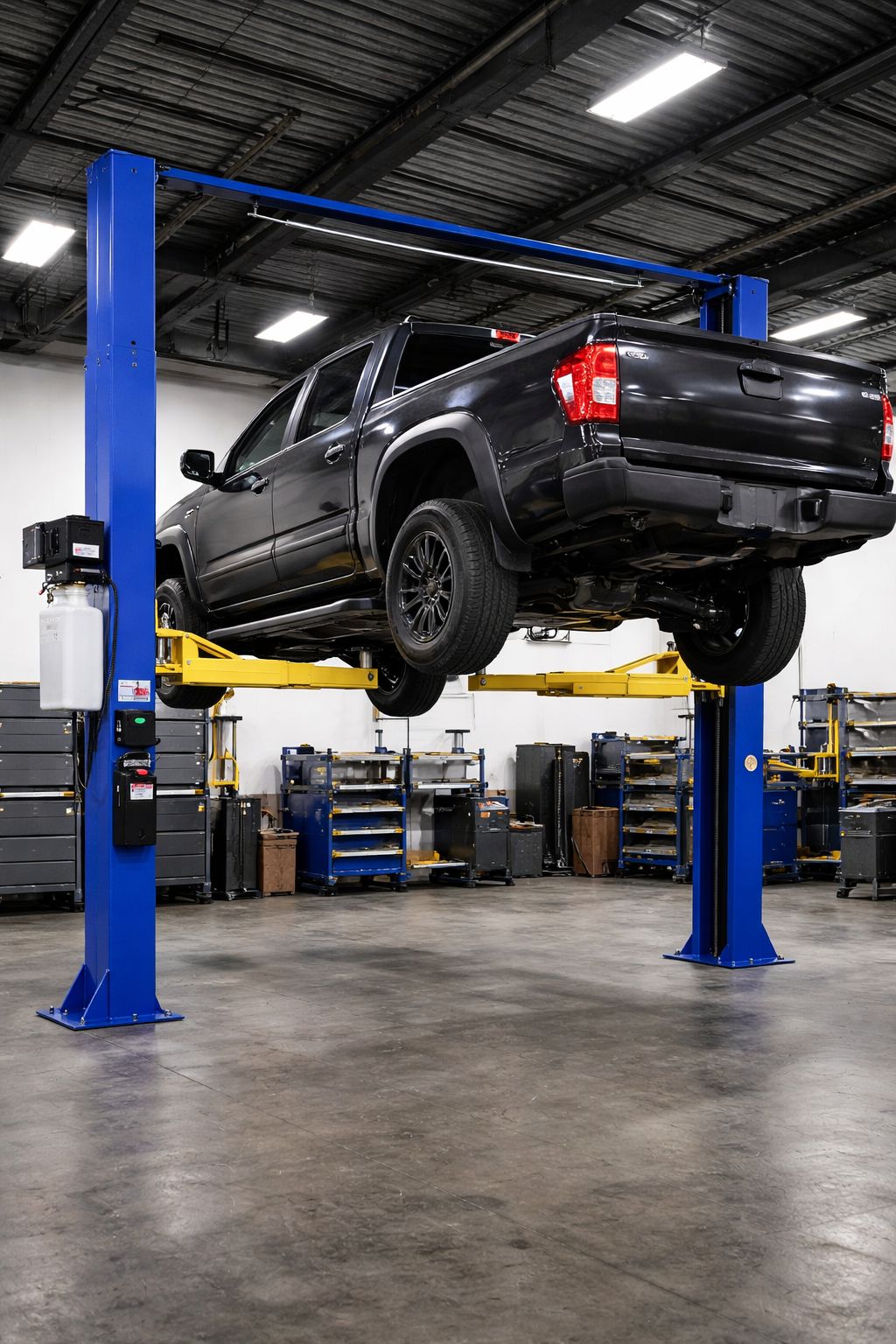

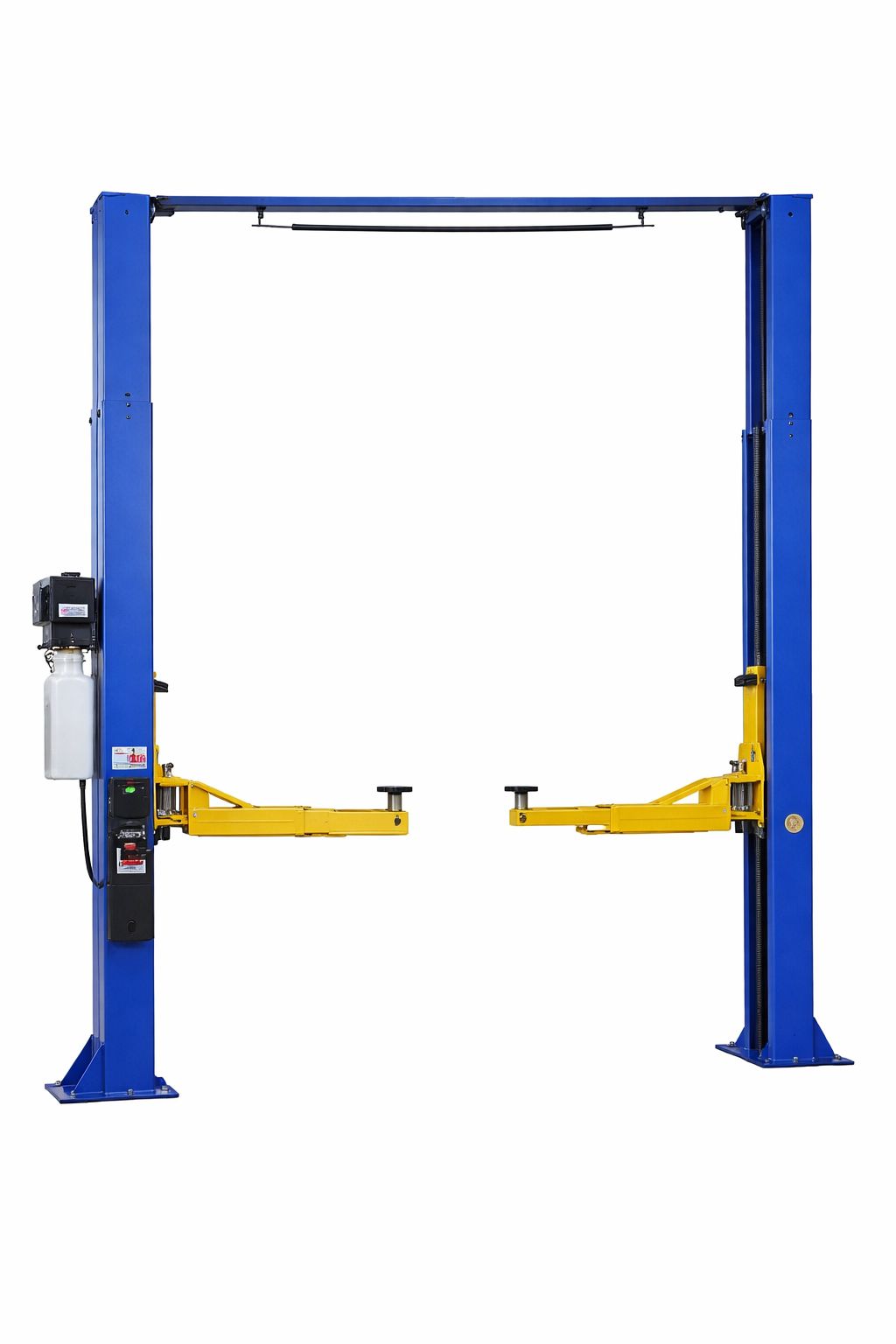

The L1100 2-Post Overhead Hoist is a heavy-duty lifting solution engineered for precision, safety, and versatility. With a robust 10,000 lb. capacity, this lift is designed to handle everything from low-profile sports cars to full-sized pickup trucks. The overhead clear-floor design removes the center floor plate, providing a seamless workspace for rolling jacks, oil drains, and technicians.
Equipped with a powerful 3HP motor and a Symmetrical Arm Assembly, the L1100 ensures balanced lifting for a wide variety of vehicle wheelbases. Whether you are running a high-volume shop or a high-end home garage, this hoist delivers the industrial-strength reliability required for serious automotive work.
Top Performance Features
-
Symmetrical 2-Stage Arms: Features equal-length front and rear arms with a reach of 30.7" to 48", allowing for easy spotting and balanced weight distribution.
-
Overhead Clear-Floor Design: Provides an unobstructed shop floor for total mobility of equipment beneath the vehicle.
-
Enhanced Safety System: * Dual-Point Manual Release: Robust mechanical locks for secure positioning.
-
Automatic Arm Restraints: Keeps arms locked firmly in place during the lift.
-
Up-Limit Protection: Integrated switch automatically stops the motor before the cylinders reach max stroke.
-
-
Premium Construction: * Heavy-duty 5/8" thick base plates and 5/16" diameter synchronization cables.
-
High-molecular self-lubricating nylon sliders ensure the carriage moves smoothly with minimal maintenance.
-
Integrated door guards to prevent vehicle damage during entry and exit.
-
-
Overload Protection: A built-in relief valve in the power pump prevents the system from being stressed beyond its 10,000 lb. limit.
Core Specifications
| Feature | Details |
| Lifting Capacity | 10,000 lbs |
| Power Unit | 220V (or 110V) 60Hz, 1PH, 3HP Motor |
| Overall Height | 145-5/8" |
| Overall Width | 133-1/4" |
| Max Lift Height | 78-7/8" |
| Min. Pad Height | 3-7/8" (Low profile friendly) |
| Drive-Thru Clearance | 100" |
| Rise Time | 20–60 Seconds |
| Arm Steel Thickness | 15/64" |
| Shipping Weight | 1,460 lbs |
What’s Included?
-
Full set of Drop-in Lifting Pads
-
1 Set of Truck Adapters (for high-clearance frames)
-
All necessary Anchor Bolts and Mounting Hardware
-
Built-in Rubber Door Protectors
Note: Due to the 145-5/8" height, a minimum ceiling clearance of 12.5 to 13 feet is recommended for optimal operation.
